Tellerettes®... the Power in the Tower, Scrubber tower packing
Tellerette® Packing has a unique patented toroidal helix design that makes them dramatically more efficient than conventional packings for mass transfer, heat transfer and particulate collection. The newest K-series (2K & 3K) improves on the original Tellerette® design with increased open area and reduced pressure drop providing high scrubbing efficiency at velocities up to 700 fpm. This make the K series Tellerette® ideal for retrofitting existing towers that may require increased capacity, higher removal efficiency, or both.
Tellerette® scrubber packings are a high efficiency plastic tower packings designed for use in wet scrubbers, cooling towers, mist eliminators, absoption columns and gas strippers.
They provide a surface area equal to many other packings but with much greater liquid surface availability. There are many times more interstitial hold up points than other packings, and this has the effect of continuously generating fresh liquid surface area which is the key for high mass transfer between the gas and liquid phases.
Tellerette® Type 1 are used in small diameter towers.
Tellerette® Type 2R are used in vessels with a diameter of more than 400mm. This packing is the original packing that has been used for more than 3 decades.
Tellerette® Type 3K is the latest packing available in the range with improved mass transfer efficiency.
USES
•Wet scrubbers for gas absorption
•Cooling towers for heat transfer
•Mist eliminators for liquid particle removal
•Gas absorption columns
•Gas strippers
•Air washers
There is only one place to find unique, patented Tellerette® Tower Packing: Verantis.
|
|
| |

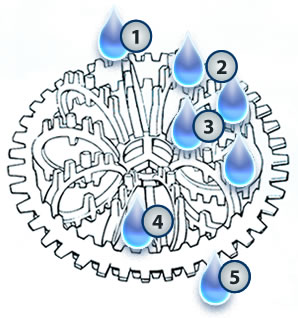

1. Liquid is collected by
inertial impaction.
2. Droplets form at countless interstitial holdup points.
3. As each droplet falls,
it strikes the next
packing element and bursts,
exposing fresh surfaces to gas.
4. This agglomeration/dispersal cycle
repeats continuously with no additional energy requirements.
5. Contaminants are absorbed with
unique efficiency.
|
Tellerette® Features:
- Greater gas flow capacity permits use of smaller diameter, lower cost columns.
- Existing towers can be retrofitted for higher capacity and improved efficiency.
- Lower pressure drop reduces operating costs.
- High open area design minimizes fouling.
- High column stability. No classic flooding.
- Effective impingement of both liquid droplets and solid particulate.
- No channeling when proper liquid distribution is used.
- Reduces operating costs.
- A shallow bed of Tellerettes® provides effective mist elimination.
- Available in a wide range of materials including polypropylene, polyethylene,
PVC, PVDF, and Tefzel.

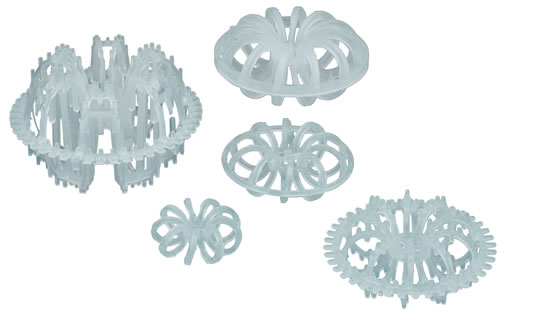

Tellerette® Types:
 |
Verantis Tellerette® Tower Packing is available in a wide range of materials including
Polypropylene, Polyethylene, PVC, CPVC, PVDF, and Tefzel. |
|
