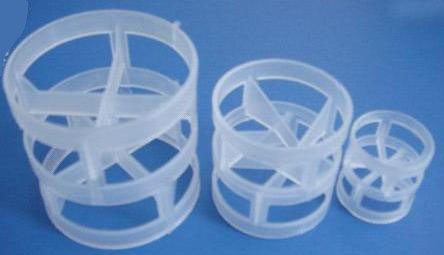

PFA pall ring

Application:
• Absorption, scrubbing, and stripping services
• Versatile alternative to metal Pall rings

Material available:
Materials: Polypropylene, Glass Filled Polypropylene, Low Density Polyethylene, High Density Polyethylene, PVC, CPVC, Kynar (PVDF), Halar (E-CTFE), Tefzel (ETFE), Glass Filled ETFE, PFA

Size: 16mm, 25mm, 38mm, 50mm, 76mm
Or: 5/8", 1", 1.1/2", 2", 3"

Teflon® PFA is a perfluoroalkoxy copolymer resin available in pellet or powder. Teflon® PFA combines the processing ease of conventional thermoplastic resins with the excellent properties of Teflon® polytetrafluoroethylene (PTFE). Products manufactured from Teflon® PFA can offer continuous service temperatures up to 260°C (500°F). What's more, Teflon® PFA provides superior creep resistance at high temperatures, excellent low-temperature toughness, and exceptional flame resistance.

Teflon® PFA fluoropolymer resins are processed by conventional melt-extrusion techniques and by injection, compression, rotational, transfer, and blow-molding processes. The high melt strength and heat stability of these resins permit the use of relatively large die openings and high-temperature draw-down techniques, which increase processing rates. Reciprocating screw injection molding machines are recommended. Corrosion-resistant metals should be used in contact with the molten resin. Long extruder barrels, relative to diameter, are used to provide residence time for heating the resin to 316° to 427°C (600° to 800°F).
