Polypropylene,PVDF,ETFE,PE Tri-Packs 3.1/2", tri pack, tri packs

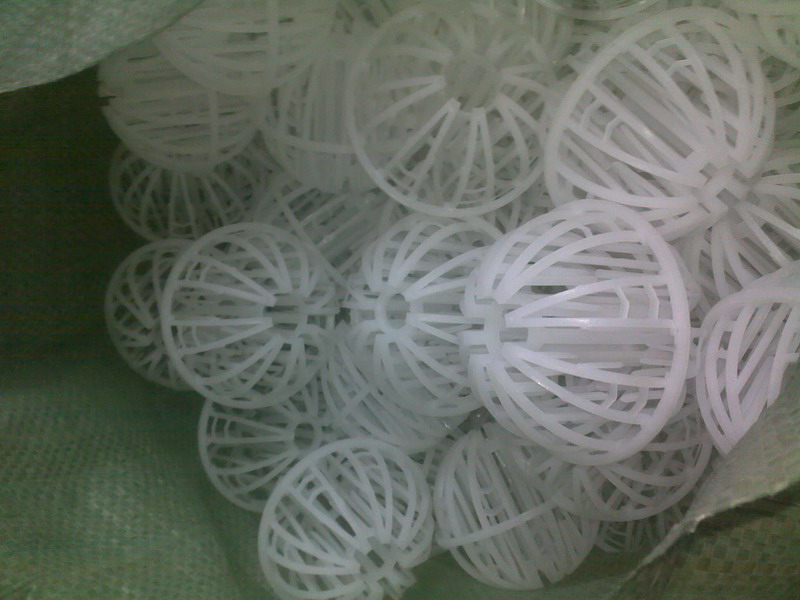

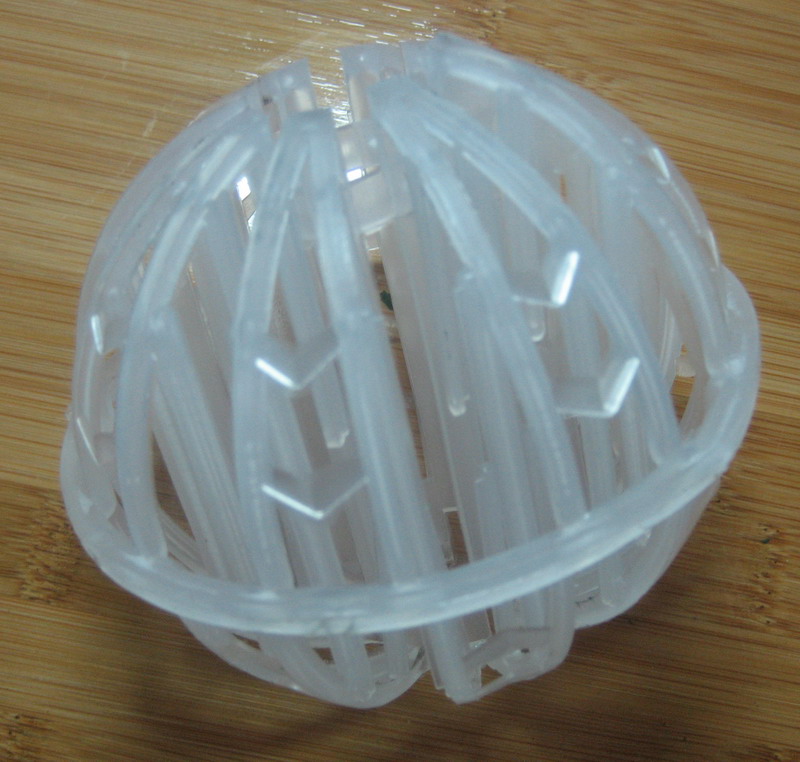

Plastic Jaeger Tri-Packs is a hollow spherical column packing constructed of a unique network of ribs, struts, and drip rods,Plastic Jaeger Tri-Packs geometry was totally revolutionary and unprecedented at the time of its 1978 introduction and Plastic Jaeger Tri-Packs continues to be the packing to which all others are compared. Plastic Jaeger Tri-Packs are distinguished from other packings by its superior geometric shape. Their spherical shape allows each element to roll into the "packed position" without forming void areas common to irregular shaped packings or those with excessive pins and appurtenances. With Jaeger Tri-Packs®, there is no need for allowances for settling and nesting is virtually impossible. The round Plastic Jaeger Tri-Packs offers reliable and predictable loading of your tower which means reliable and predictable performance.

In addition to the superior geometric shape, an active surface area is vital to mass transfer. The unique network of ribs, struts and drip rods have proven to give the Plastic Jaeger Tri-Packs a distinct advantage in providing excellent wetting qualities and maintaining liquid distribution through the packed bed. Some suppliers claim more surface area, but surface area alone is not an indication of performance. Excessive surface area can impede proper gas and liquid contact and always results in higher pressure drop which increases horsepower requirements and operating costs. The  Plastic Jaeger Tri-Packs offers an optimum surface area to open area ratio for which yields excellent mass transfer efficiency and reduced operating costs.

SPECIFICATIONS/PROPERTIES

Properties Table
Size (in.)	1"	1 ¼”	2"	3 ½”
Geometric Surface Area (ft2/ft3)	85	70	48	38
Packing Factor (1/ft)	28	25	16	12
Void Space (%)	90	92	93.5	95
Bulk Density (lb/ft3) (PP)	6.2	5.6	4.2	3.3

Material of Tri packs
Polypropylene	(PP)		TopEx®	(LCP)
Polyethylene	(PE)		Kynar®	(PVDF)
Polypropylene Glass-Filled	(PPG)		Halar®	(ECTFE)
Noryl®	(PPO)		Teflon®	(PFA)
Polyvinylchloride	(PVC)		Tefzel®	(ETFE)
CorzanTM	(CPVC)		Tefzel® Glass-Filled	(ETFE-G)
Other plastics are available upon request.
