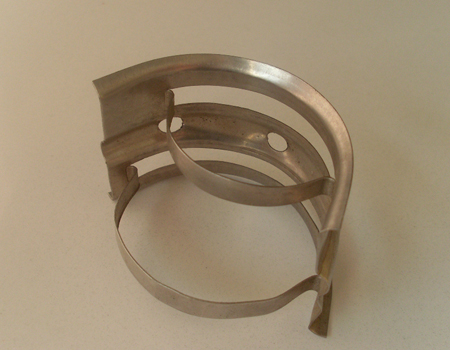

Nutter packing ring
Nutter ring, 304,316L mettaliic nutter rings packing is a high performance metal random packing verified by Fractionation Research Institute ( FRI ). Nutter ring, 304,316L mettaliic nutter rings’ efficiency enhanced by lateral liquid spreading and surface film renewal. Metal nutter ring not only have superior surface utilization in mass and heat transfer but also make the packed be height shorter .
Specifications of nutter rings:
| Specification |
Surface area |
Void space |
Bulk density |
Num |
| inch |
mm |
m2/m3 |
% |
kg/m3 |
per/m3 |
| 0.7 |
Ф17.5mm |
226 |
97.7 |
177 |
167 400 |
| 1 |
Ф25mm |
168 |
97.7 |
179 |
67 100 |
| 1.5 |
Ф38mm |
124 |
97.6 |
181 |
26 800 |
| 1.75 |
Ф44mm |
106 |
98 |
155 |
20 200 |
| 2 |
Ф50mm |
96 |
98.2 |
144 |
13 600 |
| 2.5 |
Ф62.5mm |
83 |
98.4 |
121 |
8 800 |
| 3 |
Ф75mm |
66 |
98.2 |
133 |
4 200 |
|
