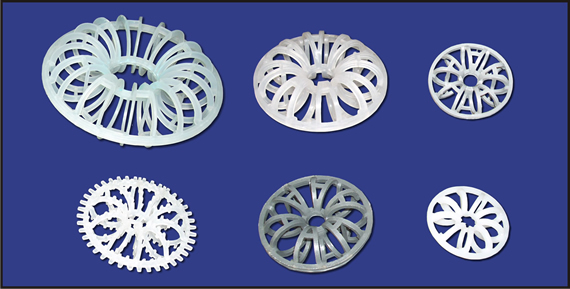

Tellerette packing ring
.jpg)
Tellerette packing ring
, also known as packing filler, is a small ring of 12 radially arranged and composed by a large flat sphere.
As the gap filler can be at a higher liquid holdup, the tower can remain liquid longer, thus increasing the gas-liquid contact time, improve the efficiency of mass transfer packing. Taylor rosette packing with porosity, pressure drop and low mass transfer unit height, high flooding point, vapor-liquid contact with the full proportion of small, mass transfer and high efficiency, used for gas scrubbing, cleaning the tower.
Tellerette packing ring details
★ Product Overview
Tellerette packing ring, also known as packing filler, is a small ring of 12 radially arranged and composed by a large flat sphere. As the gap filler can be at a higher liquid holdup, the tower can remain liquid longer, thus increasing the gas-liquid contact time, improve the efficiency of mass transfer packing.
★ Tellerette packing ring Features
Taylor rosette packing with porosity, pressure drop and low mass transfer unit height, high flooding point, vapor-liquid contact with the full proportion of small, mass transfer and high efficiency.
★ Tellerette packing ring Applications
Garland filler in various media using a temperature of 60-150 degrees Celsius, and more for gas scrubbing, purification tower
|
规格
D×H×S(mm)
|
比表面积
m²/m³
|
空隙率
%
|
堆积重量
Kg/m³
|
堆积个数
n/m³
|
|
25×9×（1.5×2）
|
269
|
82
|
103
|
170000
|
|
47×19×（3×3）
|
185
|
88
|
85
|
32500
|
|
51×19×（3×3）
|
180
|
89
|
75
|
25000
|
|
59×19×（3×3）
|
150
|
92
|
70
|
17500
|
|
73×28×（3×4）
|
127
|
89
|
55
|
8000
|
|
95×37×（3×6）
|
94
|
90
|
53
|
3600
|
|
145×48×（3×6）
|
65
|
95
|
55
|
1100
|
|
