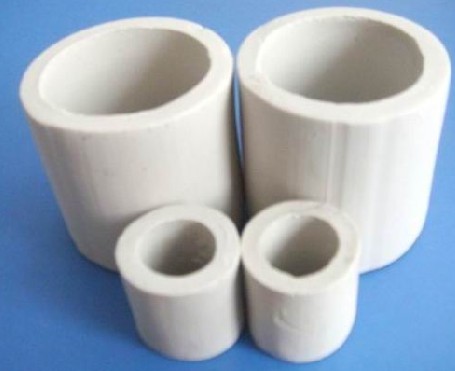

Ceramic Raschig ring 1/2", 1",1.1/2", 2", 3", 4"

Ceramic raschig ring Ceramic Raschig Ring is the first development of a random packing. Ceramic Raschig ring shape is simple, its height and diameter equal size.. The Ceramic raschig ring is common regular packing that they are still used for refilling existing columns and other applications. Its surface ratio is higher than ceramic cylinders and balls by 30% and its ring shape has high mechanical stability.  Specifications for Ceramic Raschig ring

Size IN Packing Size   mm Dimensions (ODxHxTHK) mm Surface Area m2/m3 Void % Bulk Quantity pcs/m3 Bulk Density kg/m3 F Factor (dry) m-1   6 6×6×2 789 73 3110000 737 2030   10 10×10×2 440 70 720000 700 1280 1/2” 15 15×15×2 330 70 237000 590 960   16 16×16×2 305 73 192500 730 784 1” 25 25×25×2.5 190 78 49000 505 400 1.1/2” 40 40×40×5 126 75 12700 577 305 2” 50 50×50×5 93 81 6000 457 177 3” 80 80×80×9.5 90 68 1910 714 234 4” 100 100×100×10 70 70 1000 700 172 6” 150 150×150×15 50 68 295 790 142
