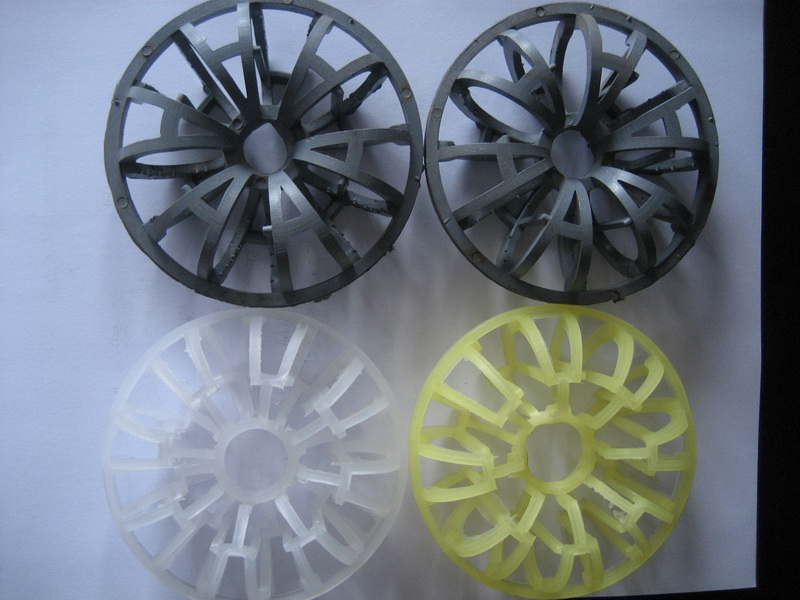

Tellerette 3R

Tellerette 3R is also named Teller Ring which is made up of twelve radial arranged small rings.

Tellerette 3R is also an economical and versatile industry standard with well known performance characteristics.

Name	Normal mm	Diameter*Height* Thickness mm	Surface area m2/m3	Void space %	Bulk density kg/m3	No.elements per/m3	Packing factor m-1
Tellerette ring	ø25	25*9*1.5*2	269	82	128	175000	488
	ø47	47*19*3*3	185	88	111	32500	271
	ø51	51*19*3*3	180	89	103	25000	255
	ø59	59*19*3*3	150	92	102	17500	213
	ø73	73*28*3*4	127	89	102	8000	180
	ø95(3R)	95*37*3*6	94	90	88	3600	129
	ø145	145*48*3*6	65	95	47	1100	76
