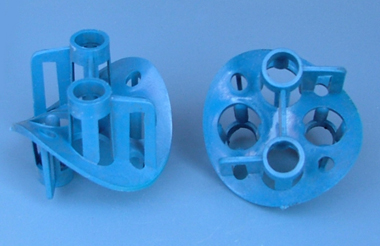

Heilex 200, Heilex 300
Heilex ring
Heilex 200, Heilex 300 is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).
Due to unique framework, Heilex 200, Heilex 300 has low pressure drop. Corrosion resistance, excellent impinge capability, good gas-liquid isolation. Heilex Ring is very suitable for the absorption & refrigeration of gas, refine of gas and water treatment system.
Technical data sheet for Heilex 200, Heilex 300
|
Size
|
Spec.
|
D*H (mm)
|
Number per m³
|
Bulk density (kg/m³)
|
Surface area (m²/m³)
|
Free volume (%)
|
|
Heilex200
|
Dg50
|
50*50
|
8000
|
65
|
101
|
93
|
|
Heilex300
|
Dg76
|
76*76
|
3420
|
56
|
55
|
94
|
|
Heilex400
|
Dg100
|
100*100
|
1850
|
48
|
75
|
95
|
Note: The above data are reference to material PP
|
